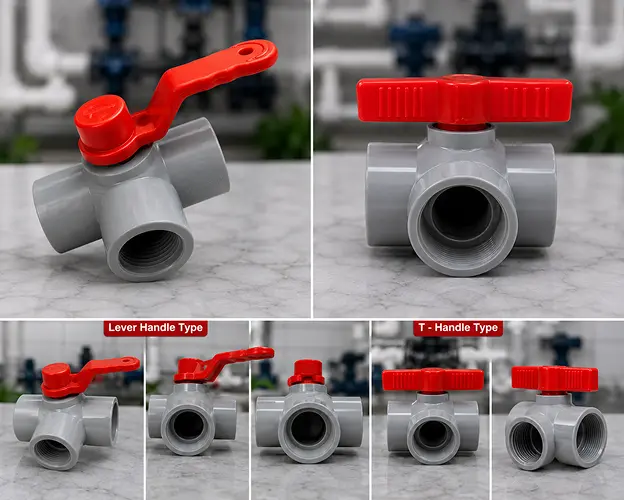

Three Way Ball Valve

Three Way Ball Valve

Three Way Ball Valve Manufacturer

Gokul PolyValves Pvt. Ltd. is one of the leading companies that manufacture and supply Three Way Ball Valves which have been developed to divert, mix and distribute flows effectively in pipe line systems. Made from high-quality materials like PP, PVC, CPVC, UPVC, PPH, and PVDF, the Three Way Ball Valves exhibit excellent durability as well as corrosion and chemical resistance properties. The presence of three ports makes it easy to route the fluids between several pipelines. These valves find numerous applications in industries such as chemical processing, water treatment, pharmaceutical, irrigation, and industrial.

Three Way Ball Valve
Key Advantages

Features of Three Way Ball Valve

Discover the performance highlights and material advantages of Gokul's Three Way Ball Valve.

Material Protection

1. Port Configurations

Available in L-Port and T-Port configurations

Build Quality

2. Thermoplastic Construction

Manufactured from high-quality thermoplastic materials

3. Chemical & Corrosion Resistance

Excellent chemical and corrosion resistance

4. Quarter-Turn Operation

Smooth quarter-turn operation

5. Leak-Proof Sealing

Leak-proof sealing system

6. Flow Diversion & Mixing

Suitable for flow diversion and mixing applications

7. Lightweight Construction

Lightweight yet durable construction

8. Easy Installation & Maintenance

Easy installation and maintenance

9. Low Operating Torque

Low operating torque

Operation Dynamics

10. Long Service Life

Long service life and dependable performance

90°
Engineering Parameters

Specifications of
Three Way Ball Valve

Every parameter precision-engineered for performance, durability, and reliability across demanding environments.

Material
PP, PVC, UPVC, CPVC, PPH, PVDF
Valve Type: Three Way Ball Valve
Valve Type
Three Way Ball Valve
Port Design: L-Port / T-Port
Port Design
L-Port / T-Port
Size Range: 15 mm to 150 mm
Size Range
15 mm to 150 mm
Connection Type: Threaded, Socket, Flanged
Connection Type
Threaded, Socket, Flanged
Operation: Manual Lever Operated
Operation
Manual Lever Operated
Pressure Rating: Up to PN10
Pressure Rating
Up to PN10
Temperature Range: Up to 140C (Depending on Material)
Temperature Range
Up to 140C (Depending on Material)
Seat Material: PTFE
Product Name
Three Way Ball Valve
Product Name: Three Way Ball Valve
Material
PP, PVC, UPVC, CPVC, PPH, PVDF
Material: PP, PVC, UPVC, CPVC, PPH, PVDF
Valve Type
Three Way Ball Valve
Valve Type: Three Way Ball Valve
Port Design
L-Port / T-Port
Port Design: L-Port / T-Port
Size Range
15 mm to 150 mm
Size Range: 15 mm to 150 mm
Connection Type
Threaded, Socket, Flanged
Connection Type: Threaded, Socket, Flanged
Operation
Manual Lever Operated
Operation: Manual Lever Operated
Pressure Rating
Up to PN10
Pressure Rating: Up to PN10
Temperature Range
Up to 140C (Depending on Material)
Temperature Range: Up to 140C (Depending on Material)
Seat Material
PTFE
Seat Material: PTFE
Seal Material
EPDM / FKM (Viton)
Seal Material: EPDM / FKM (Viton)
Media
Water, Chemicals, Acids, Alkalis
Media: Water, Chemicals, Acids, Alkalis
Application
Chemical Processing, Water Treatment, Pharmaceutical, Irrigation, Industrial Systems
Application: Chemical Processing, Water Treatment, Pharmaceutical, Irrigation, Industrial Systems
FAQ Support

Frequently Asked Questions

Got questions? We have compiled the answers to the most common inquiries regarding our Three Way Ball Valve.

A Three Way Ball Valve is a valve with three ports that allows fluid flow to be diverted, mixed, or distributed between multiple pipeline connections.

The two common types are L-Port and T-Port Three Way Ball Valves, each designed for specific flow control applications.

L-Port valves are primarily used for flow diversion between two outlets, while T-Port valves are used for flow mixing and distribution among multiple ports.

They are widely used in chemical industries, water treatment plants, pharmaceutical facilities, irrigation systems, and industrial process lines.

Yes, when manufactured from materials such as PP, PPH, or PVDF, they provide excellent resistance to corrosive chemicals and aggressive media.

These valves are available with threaded, socket, and flanged end connections to suit different piping systems.
