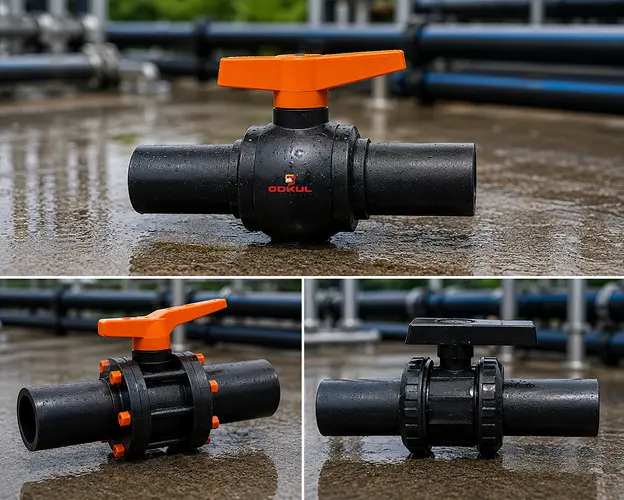

HDPE Butweld Type Ball Valve

HDPE Ball Valve Butweld Type

HDPE Ball Valve
Butweld Type

The HDPE Buttweld Type Ball Valve is a sturdy control of flow option made for HDPE piping systems that need solid shut-off and durable operation. Butt the welding process is used to join the valve to the pipeline, forming a seamless, high-strength, leak-proof junction that becomes an important part of the standard pipe network. This valve, which is made of excellent High-Density Polyethylene (HDPE), has excellent strength against abrasion, chemicals, corrosion, and environmental stress. It is perfect for water supply, irrigation, industrial processing, mining, and wastewater management applications because to its full-port design, which offers smooth flow with no stress loss.

HDPE Butweld Type Ball Valve
Key Advantages

Features of HDPE Butweld Type Ball Valve

Discover the performance highlights and material advantages of Gokul's HDPE Butweld Type Ball Valve.

Material Protection

1. Premium Grade HDPE

Manufactured from high-grade High-Density Polyethylene (HDPE) material for maximum durability.

Build Quality

2. Buttweld Connection

Buttweld connection provides a strong, reliable, and permanent leak-proof joint.

3. Leak-Proof Sealing

Leak-proof performance with superior sealing capability for high safety margins.

4. Corrosion & Abrasion Resistance

Excellent resistance to corrosion, aggressive chemicals, Scaling, and abrasion.

5. Full-Port Flow Design

Full-port design ensures maximum flow efficiency with zero pressure drop.

6. Lightweight Construction

Lightweight construction makes handling, transport, and installation extremely easy.

7. Buried & Surface Piping

Highly suitable for both underground buried lines and above-ground piping systems.

8. UV & Weather Resistance

UV-stabilized material offers strong resistance to harsh weather and sunlight exposure.

Operation Dynamics

9. Versatile Size Range

Available in a wide range of sizes and pressure ratings to fit standard pipeline systems.

90°
Engineering Parameters

Specifications of
HDPE Butweld Type Ball Valve

Every parameter precision-engineered for performance, durability, and reliability across demanding industrial environments.

Material
High-Density Polyethylene (HDPE)
Pressure Rating: PN10 / PN16
Pressure Rating
PN10 / PN16
Temperature Range: 0°C to 60°C
Temperature Range
0°C to 60°C
Bore Type: Full Bore
Bore Type
Full Bore
Seal Material: EPDM / NBR / PTFE
Seal Material
EPDM / NBR / PTFE
Product Type: HDPE Buttweld Type Ball Valve
Product Type
HDPE Buttweld Type Ball Valve
Connection Type: Buttweld / Butt Fusion
Connection Type
Buttweld / Butt Fusion
Applications: Water Supply, Industrial Processing
Applications
Water Supply, Irrigation, Industrial Processing, Mining, Wastewater Treatment
Material: High-Density Polyethylene (HDPE)
Product Type
HDPE Buttweld Type Ball Valve
An HDPE Buttweld Type Ball Valve is designed for solid shut-off and permanent connection in HDPE pipe systems.
Material
High-Density Polyethylene (HDPE)
Premium-grade HDPE provides excellent resistance to chemicals, corrosion, abrasion, and environmental stress.
Connection Type
Buttweld / Butt Fusion
Butt fusion connection creates a seamless, leak-proof joint that has the same strength as the pipe network.
Valve Type
Ball Valve
Quarter-turn manual operation allows simple, rapid flow control and complete leak-free shut-off.
Operation
Manual Lever Operated
Ergonomic manual lever ensures smooth operations with low operating torque.
Size Range
20 mm to 315 mm (or larger on request)
Available in a wide range of standard sizes from 20 mm to 315 mm (or larger size requirements on request).
Pressure Rating
PN10 / PN16
Rated for PN10 and PN16 to handle high-pressure environments with high safety margins.
Temperature Range
0°C to 60°C
Designed to operate reliably in a temperature range of 0°C to 60°C for standard liquid transmission.
Bore Type
Full Bore
Full bore/port design ensures maximum flow efficiency with zero pressure drop.
Seal Material
EPDM / NBR / PTFE
High-quality elastomeric seals ensure long-term leak-proof service and chemical compatibility.
Applications
Water Supply, Irrigation, Industrial Processing, Mining, Wastewater Treatment
Highly versatile flow control solution for municipal water systems, farming irrigation, industrial process pipelines, mining operations, and wastewater treatment plants.
Installation Method
Butt Fusion Welding
Joined directly to the pipe network via standard butt fusion welding methods for permanent installation.
FAQ Support

Frequently Asked Questions

Got questions? We have compiled the answers to the most common inquiries regarding our HDPE Butweld Type Ball Valve.

An HDPE Buttweld Type Ball Valve is a valve that is joined to HDPE pipes using butt fusion welding, creating a permanent and leak-free connection for fluid control applications.

Buttweld connections provide excellent joint strength, eliminate leakage risks, reduce maintenance requirements, and offer long-term reliability in HDPE piping systems.

These valves are widely used in water distribution systems, irrigation projects, industrial pipelines, mining operations, and wastewater treatment facilities.

Yes, HDPE material offers outstanding resistance to chemicals, corrosion, scaling, and environmental conditions, making it suitable for demanding applications.

Yes, the butt fusion joint creates a durable and permanent connection that is ideal for buried and underground pipeline installations.

No, HDPE Buttweld Type Ball Valves are designed for low-maintenance operation and provide reliable performance over a long service life.
