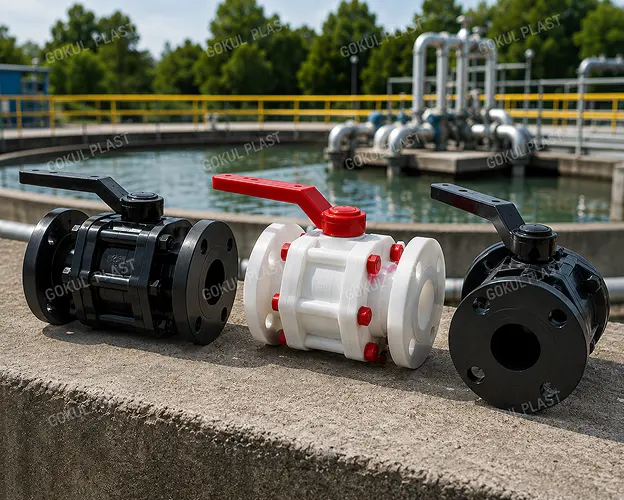

HDPE Three Piece Ball Valve Flange End

HDPE Three Piece Ball Valve Flange End

HDPE Three Piece
Flange End Ball Valve Manufacturer

HDPE Three Piece Ball Valve Flange End is a high-performance flow control valve designed for reliable shut-off and regulation of liquids in industrial, chemical, water treatment, irrigation, and piping systems. Manufactured from high-density polyethylene (HDPE), this valve offers excellent resistance to corrosion, chemicals, and environmental stress. The three-piece design allows easy maintenance and replacement of internal components without dismantling the entire pipeline, while the flanged end connection ensures secure installation, leak-proof performance, and convenient integration with HDPE piping networks. Its smooth bore construction minimizes pressure loss and provides efficient fluid flow, making it an ideal solution for demanding applications.

HDPE Three Piece Ball Valve Flange End
Key Advantages

Features of HDPE Three Piece Ball Valve Flange End

Discover the performance highlights and material advantages of Gokul's HDPE Three Piece Ball Valve Flange End.

Material Protection

1. Durable HDPE Construction

Durable HDPE construction with excellent corrosion resistance.

Build Quality

2. Three-Piece Body Design

Three-piece body design for easy maintenance and servicing.

3. Flanged End Connection

Flanged end connection for secure and leak-free installation.

4. Smooth Internal Surface

Smooth internal surface reduces pressure drop and flow resistance.

5. Chemical & Fluid Handling

Suitable for water, chemicals, and industrial fluid handling.

6. Lightweight Design

Lightweight design for easy transportation and installation.

7. High Sealing Efficiency

High sealing efficiency for reliable shut-off performance.

8. UV & Abrasion Resistance

Resistant to UV exposure, abrasion, and harsh environmental conditions.

9. Low Maintenance

Long service life with minimal maintenance requirements.

Operation Dynamics

10. Multiple Sizes & Pressure Ratings

Available in multiple sizes and pressure ratings.

90°
Engineering Parameters

Specifications of
HDPE Three Piece Ball Valve Flange End

Every parameter precision-engineered for performance, durability, and reliability across demanding industrial environments.

Material
High-Density Polyethylene (HDPE)
Pressure Rating: PN10 / PN16 (depending on model)
Pressure Rating
PN10 / PN16 (depending on model)
Temperature Range: 0°C to 60°C
Temperature Range
0°C to 60°C
Sealing Material: EPDM / NBR / PTFE
Sealing Material
EPDM / NBR / PTFE
Valve Type: Full Port Ball Valve
Valve Type
Full Port Ball Valve
Product Type: HDPE Three Piece Ball Valve
Product Type
HDPE Three Piece Ball Valve
End Connection: Flange End
End Connection
Flange End
Application: Water Supply, Irrigation, Chemical Processing, Effluent Treatment
Application
Water Supply, Irrigation, Chemical Processing, Effluent Treatment
Material: High-Density Polyethylene (HDPE)
Product Type
HDPE Three Piece Ball Valve
A high-performance three-piece flow control valve designed for reliable shut-off in piping systems.
End Connection
Flange End
Secure flanged end connection ensures leak-proof installation and easy integration with existing systems.
Material
High-Density Polyethylene (HDPE)
Premium HDPE construction offers excellent chemical resistance, corrosion resistance, and long-term durability.
Valve Type
Full Port Ball Valve
Full port/bore design provides maximum flow efficiency with minimal pressure drop and resistance.
Operation
Manual Lever Operated
Equipped with a manual lever for easy, direct control and quick quarter-turn flow shut-off.
Size Range
20 mm to 315 mm (custom sizes available)
Available in a wide size range from 20 mm to 315 mm, with customizable size options on request.
Pressure Rating
PN10 / PN16 (depending on model)
Designed and rated for PN10 and PN16 working pressures, ensuring safe and reliable operation.
Temperature Range
0°C to 60°C
Suitable for liquid transmission within a standard temperature operating range of 0°C to 60°C.
Sealing Material
EPDM / NBR / PTFE
High-quality EPDM, NBR, or PTFE seals and seats ensure excellent chemical compatibility and zero leakage.
Application
Water Supply, Irrigation, Chemical Processing, Effluent Treatment
Ideal for water distribution systems, agricultural irrigation, chemical processing, and wastewater treatment plants.
Installation
Horizontal or Vertical Pipeline Systems
Flexible installation allows mounting in either horizontal or vertical pipeline configurations.
FAQ Support

Frequently Asked Questions

Got questions? We have compiled the answers to the most common inquiries regarding our HDPE Three Piece Ball Valve Flange End.

It is used to control, isolate, or shut off the flow of liquids in water distribution, industrial processing, irrigation, and chemical handling systems.

The three-piece construction allows easy maintenance, cleaning, and replacement of internal components without removing the valve body from the pipeline.

Yes, HDPE material offers excellent resistance to a wide range of chemicals, corrosion, and environmental factors, making it suitable for demanding applications.

Yes, HDPE valves are highly resistant to weathering and UV exposure, making them suitable for both indoor and outdoor installations.

These valves are widely used in water treatment plants, irrigation systems, chemical industries, wastewater management, mining operations, and industrial piping networks.

Yes, when installed with appropriate gaskets and bolting, the flanged connection provides a strong, secure, and leak-resistant seal.

Routine inspection of seals, flange connections, and valve operation is generally sufficient. The three-piece design simplifies servicing whenever maintenance is needed.
